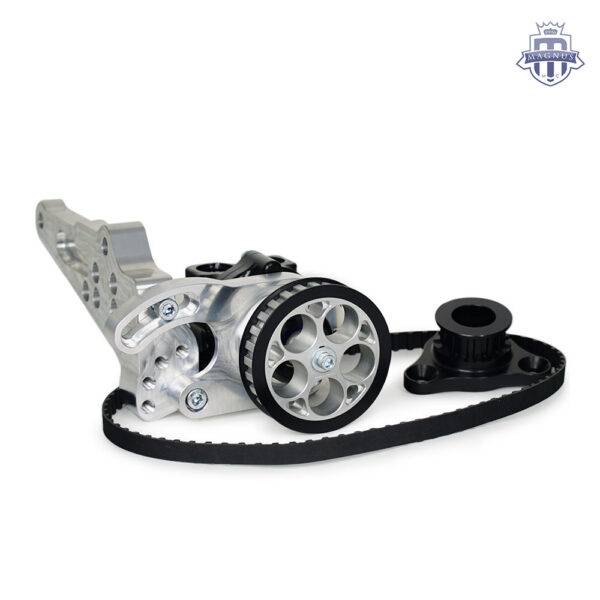

Magnus Honda Mechanical Fuel Pump Crank Drive – K Series
Price range: $3,099.80 through $5,174.40 Inc GST
Price range: $2,818.00 through $4,704.00 Ex GST
- Ships from Sydney via Australia Post, including overseas. Cost shown at checkout.
- Questions before you buy? Call (02) 9129 7600
or pay with
- Description
- Additional information
Description
Connexion offers the Magnus Multi-Fuel K-Series mechanical fuel pump kit, driven directly off the crank of the Honda K-series (requires an ATI balancer). It replaces multiple electric pumps and their wiring, removing a major source of fuel heating and tuning trouble. Magnus pumps supply more than enough flow for any power level with no drop in pressure, and have been proven to over 180psi at the rail on 12-injector K-series setups.
Features
- Crank-driven, single mechanical pump; no extra wiring, ECU outputs or electrical draw
- Compatible with petrol, methanol and ethanol

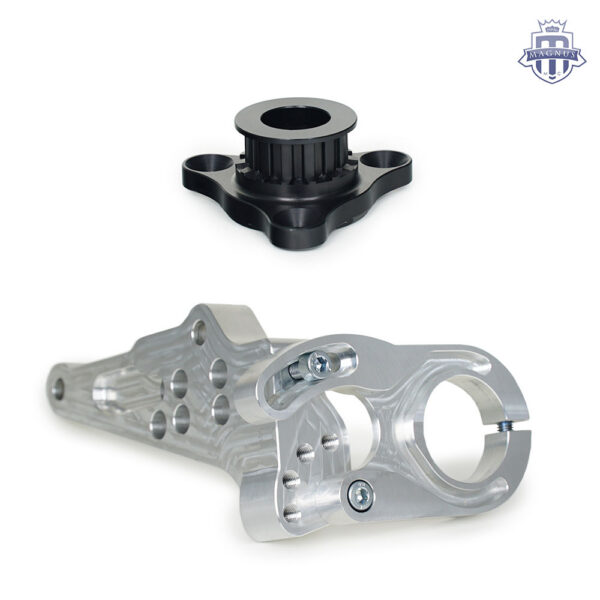

- Lightweight 3-bolt crank drive gear with hard-anodised wear parts
- Shuts off fuel supply in the event of fire or engine failure
- All kits ship with the Magnus MF fuel pump
Part numbers: MMCFUL1100 (race ATI) · MMCFUL1101 (race ATI, leaned motor mounts) · MMCFUL1102 (street ATI)
Related / pairs with: Magnus MF Mechanical Fuel Pump · Honda B-Series Dist. Drive Fuel Pump Kit · Honda H-Series Dist. Drive Fuel Pump Kit · Honda S2000 F-Series Fuel Pump Crank Drive
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| How's Your Engine Mounted? | Mounted Normal, Mounted Leaned |

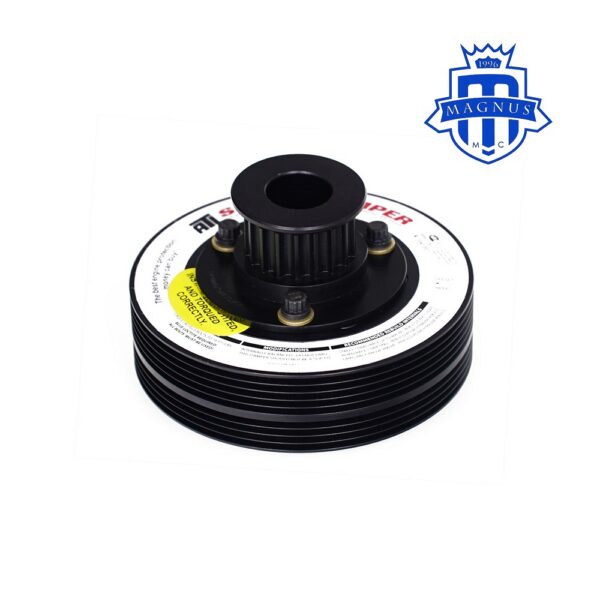

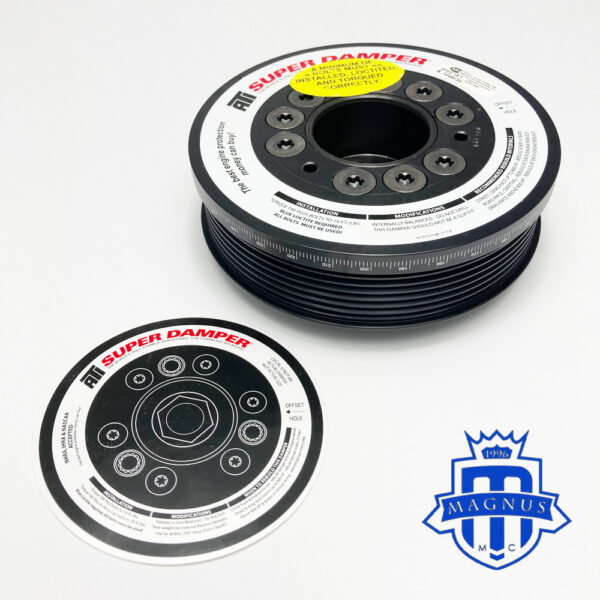

| ATI Damper Options | I have a Race ATI Damper, I have a Street ATI Damper, Add a Race ATI Damper (prt# 918478), Add a Street ATI Damper (prt# 918477) |
| Add On Fuel Filters | No Fuel Filter, Magnus 180mm High Flow Fuel Filter Kit |
