Magnus MF Mechanical Fuel Pump
Price range: $1,446.50 through $2,178.00 Inc GST
Price range: $1,315.00 through $1,980.00 Ex GST
- Ships from Sydney via Australia Post, including overseas. Cost shown at checkout.
- Questions before you buy? Call (02) 9129 7600
or pay with
- Description
- Additional information
Description

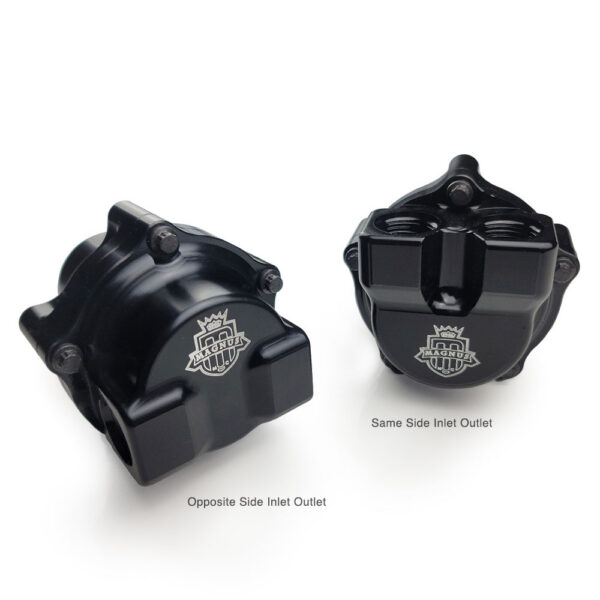

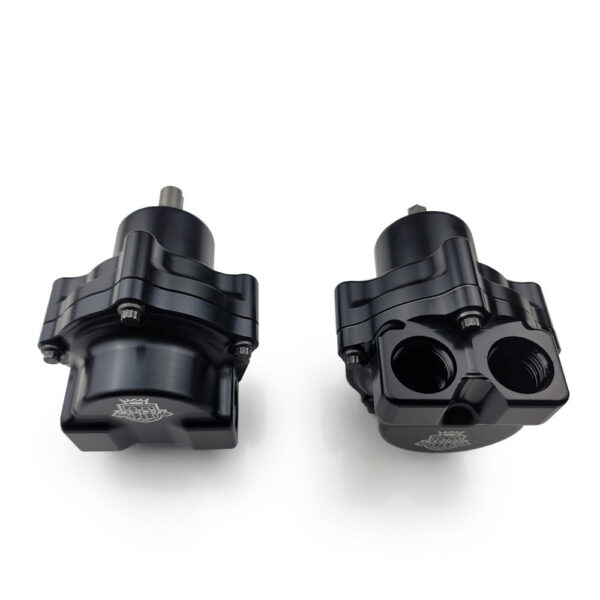

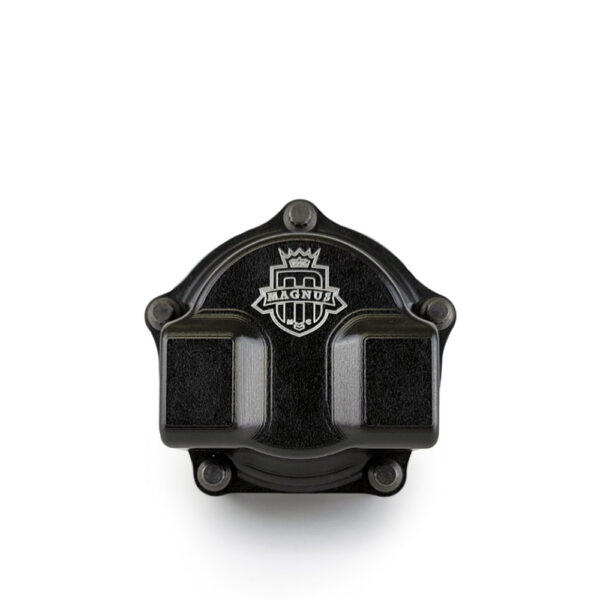

Multiple-fuel (MF) mechanical fuel pump compatible with petrol, methanol and ethanol, designed to simplify a high-horsepower fuel system and improve reliability over multiple electric pumps. The inlet and outlet sit on the same side of the pump, removing the need for elbows or U-bends — useful in tight transverse engine bays. It can be driven by the distributor, cam or dry sump system with the appropriate bracket, and can run clockwise or counter-clockwise.
Constructed from billet aluminium with hand-lapped hardened internal gears, in an anti-galling, corrosion-resistant, DLC-coated gear housing to suit the low-lubricity of alcohol fuels. Because it is mechanical, it shuts off fuel in the event of engine failure or fire.
Flow and capability (at 80% IDC, 5000 rpm pump speed = half engine speed)
- 9.7 GPM @ 40 psi — up to 2800 hp methanol / 4300 hp ethanol / 5700 hp petrol
- 8.5 GPM @ 60 psi — up to 2500 hp methanol / 3700 hp ethanol / 5000 hp petrol
Driven by a keyed 1/2″ shaft with .125″ key, or a 3/8″ male hex shaft. Currently offered in black only.

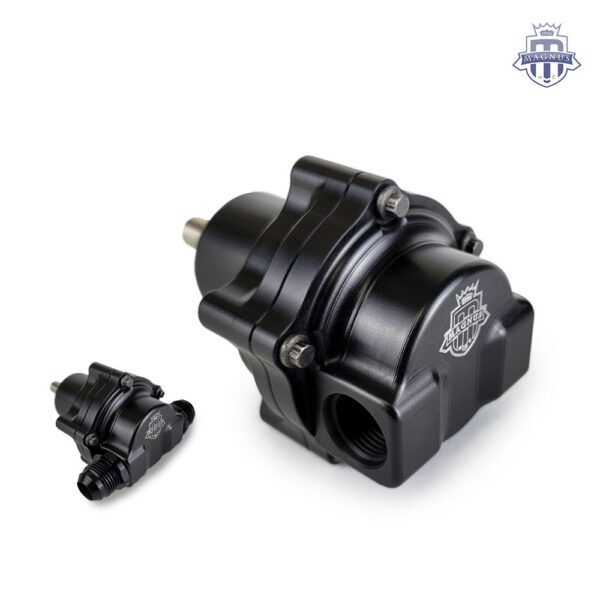

Part numbers: MMCFUL1001 (hex, same-side) · MMCFUL1002 (belt, same-side) · MMCFUL1003 (hex, opposite-side) · MMCFUL1004 (belt, opposite-side)
Related / pairs with: Magnus Oil/Fuel Pump Pulleys · Fuel Pump Adjustable Mounting Clamps · 28-Tooth Gilmer Fuel Pump Pulley · Drives for Dry Sump & Fuel Pump
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Drive Type | Hex Drive 3/8″ same side inlet and outlet MMCFUL1001, Belt Drive 1/2″ with .125″ keyed same side inlet and outlet MMCFUL1002, Hex Drive 3/8″ opposite side inlet and outlet MMCFUL1003, Belt Drive 1/2″ with .125″ opposite side inlet and outlet MMCFUL1004 |

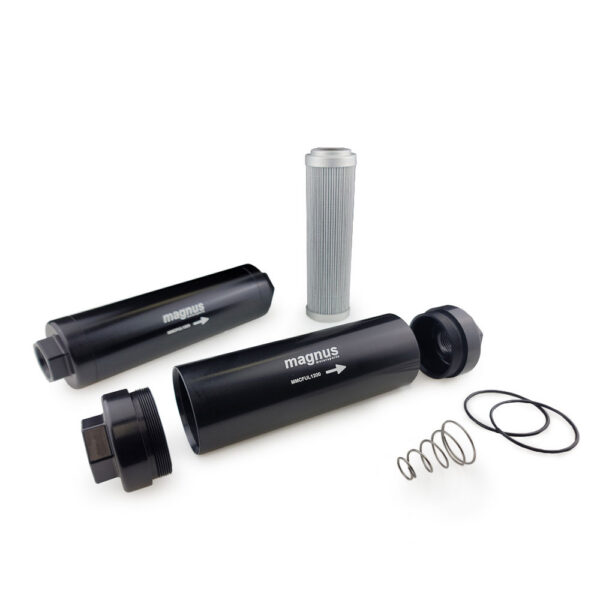

| Add On | No Fuel Filters, Magnus 180mm High Flow Fuel Filters |
