4G63 Mitsubishi Evolution 4-9 Dry Sump kit
Price range: $8,256.60 through $9,469.90 Inc GST
Price range: $7,506.00 through $8,609.00 Ex GST
- Ships from Sydney via Australia Post, including overseas. Cost shown at checkout.
- Questions before you buy? Call (02) 9129 7600
or pay with
- Description
- Additional information
Description

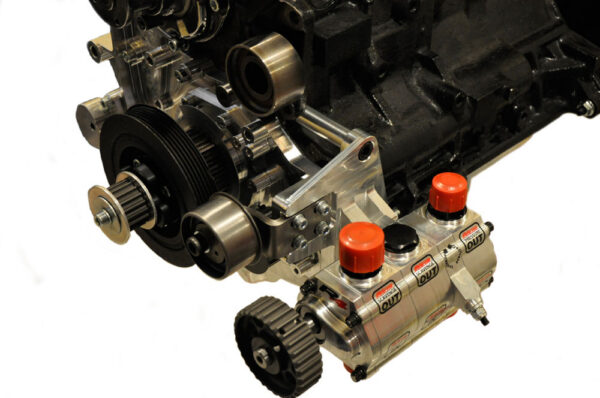

Connexion supplies the Magnus dry sump kit for the Mitsubishi Evolution IV–IX 4G63. High-rpm launch control, cornering, launching and braking all move oil away from the pickup; combined with limited drain-back and ring blow-by, the pump can run dry and destroy the engine, oil pump or turbo. An external-reservoir dry sump maintains a constant supply, reduces wear and adds vacuum-scavenging power gains. This is a bolt-on kit that retains power steering, the factory alternator location and the factory accessory and timing belts and cover.

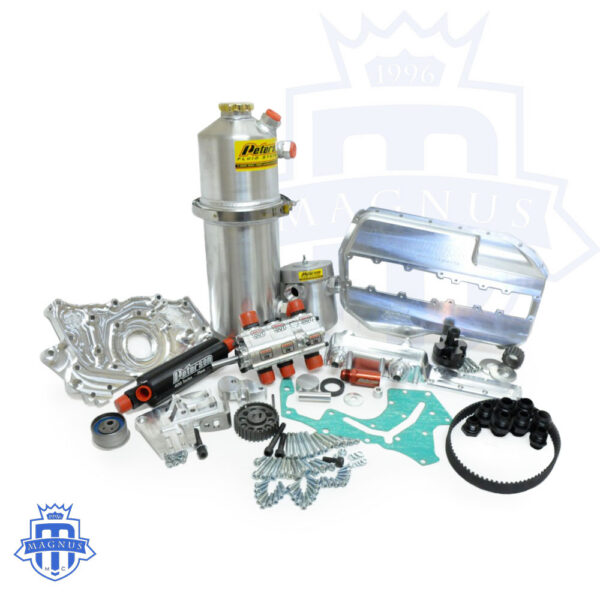

Features

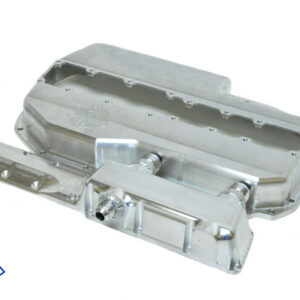

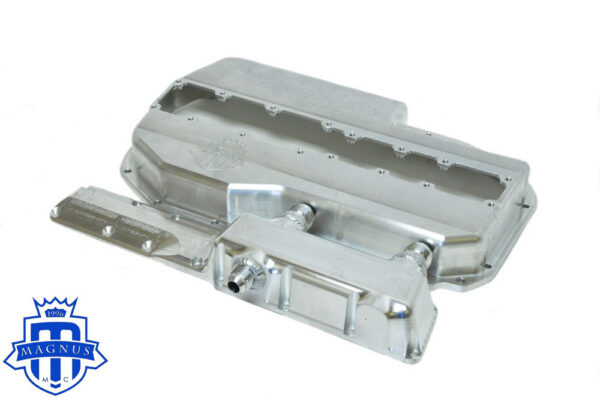

- Magnus billet 6061 oil pan and sump (RWD configuration available)
- Billet 6061 front cover with gasket, OEM pump delete and balance shaft delete kit

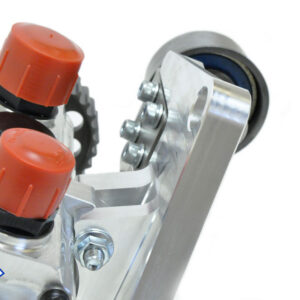

- Billet 6061 mounting brackets

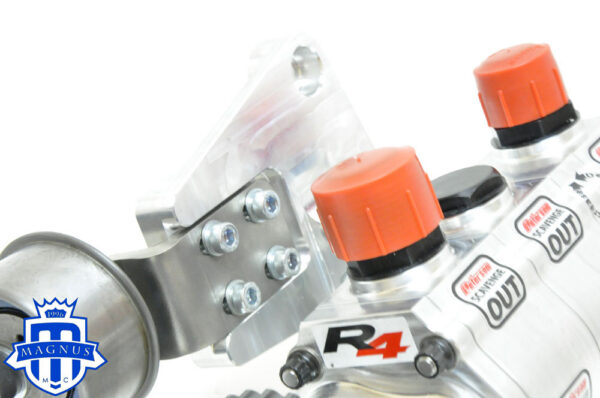

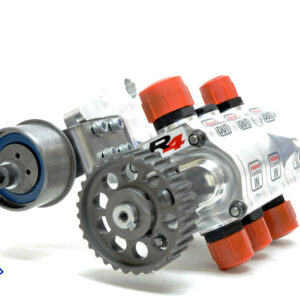

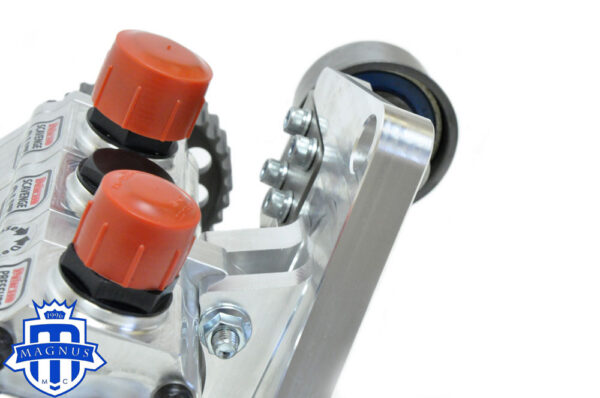

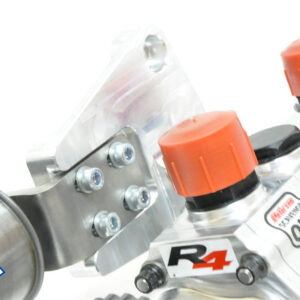

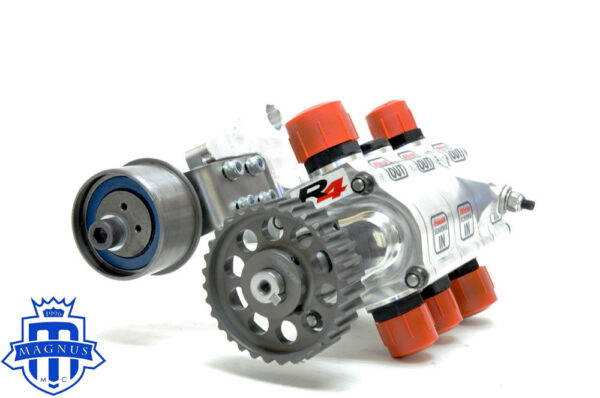

- Peterson R4 pump, 3 or 4 stage
- Provision for a mechanical fuel pump (3/8 hex drive off the rear of the pump)
- Oil tank (multiple sizes), Magnus breather tank and high-volume remote spin-on oil filter
- All ORB fittings and scavenge filter screens; complete except for lines
Configuration options
- Stock balancer gear, optional ATI drive or ATI damper
- Optional race mechanical power steering pump and electric A/C
Part numbers: MMCENG2012 (3 stage) · MMCENG2012-301 (3 stage, ATI drive) · MMCENG2012-302 (3 stage, ATI damper) · MMCENG2012-400 (4 stage) · MMCENG2012-401 (4 stage, ATI drive) · MMCENG2012-402 (4 stage, ATI damper)
Related / pairs with: 4G63 Billet Front Cover · 4G63 Billet Oil Pan · 4G63 Evo 4-9 Billet Dry Sump Valve Cover · 4G63 Dry Sump Base Kit · Peterson 4 Stage Oil Pump
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Pump / ATI Drive / ATI Damper | 3 Stage Pump, 3 Stage Pump + ATI Drive, 3 Stage Pump + ATI Drive + ATI Damper, 4 Stage Pump, 4 Stage Pump + ATI Drive, 4 Stage Pump + ATI Drive + ATI Damper |
You may also like…
-
Select options This product has multiple variants. The options may be chosen on the product pageQuick ViewDry Sump, Magnus MotorsportsPeterson 4 Stage Oil Pump
Price range: $3,358.30 through $4,123.90 Inc GST
Price range: $3,053.00 through $3,749.00 Ex GST -
Select options This product has multiple variants. The options may be chosen on the product pageQuick ViewDry Sump, Magnus MotorsportsMagnus 4G63 Dry Sump Base Kit
Price range: $3,246.10 through $3,960.00 Inc GST
Price range: $2,951.00 through $3,600.00 Ex GST -
Select options This product has multiple variants. The options may be chosen on the product pageQuick View -

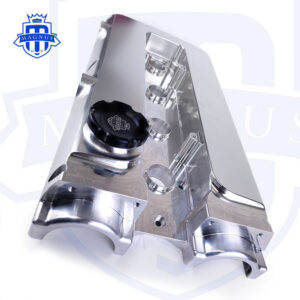

Select options This product has multiple variants. The options may be chosen on the product pageQuick ViewDry Sump, Engines & Internals, Magnus MotorsportsMagnus 4G63 Evo 4-9 Billet Valve Cover for Dry Sump or w/ Oil Cap
