Magnus 4G63 Dry Sump Base Kit
Price range: $3,246.10 through $3,960.00 Inc GST
Price range: $2,951.00 through $3,600.00 Ex GST
- Ships from Sydney via Australia Post, including overseas. Cost shown at checkout.
- Questions before you buy? Call (02) 9129 7600
or pay with
- Description
- Additional information
Description
The base dry-sump kit for the 4G63, for builders supplying their own dry-sump oil pump. It includes everything needed to eliminate the original oil pan, oil pump and cast cover.

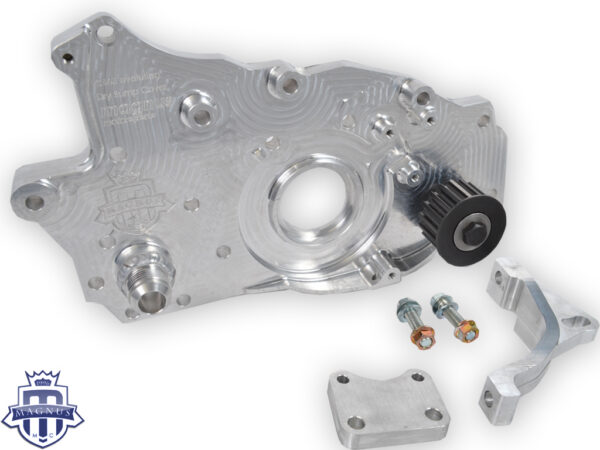

The billet front cover houses a sealed bearing and a Magnus-made idler gear that lets the original belt be reused; it retains the original timing marks and fits 7-bolt and EVO crank sensors (6-bolt crank-trigger versions to order). New gaskets match the original material and thickness to preserve trigger-to-sensor distance. The pan can be configured to your needs. Works only with the Magnus dry-sump oil pan, not original pans.
Included

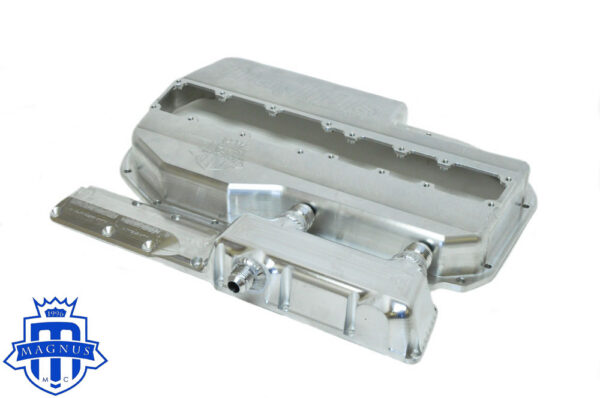

- Magnus billet dry-sump pan
- Gasket
- Idler gear and bearings
- Billet front cover and matching hardware
Part numbers: MMCENG2007 (1G DSM) · MMCENG2008 (2G DSM / Evo I-III) · MMCENG2009 (Evo IV-IX)
Related / pairs with: 4G63 Billet Front Cover · 4G63 Billet Oil Pan · 4G63 Evo 1-3 & DSM Dry Sump Full Kit · Peterson 4 Stage Oil Pump
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Magnus 4G63 Dry Sump Base Kit | DSM 1G, DSM 2G / Evo I – III, Evo IV – IX |
