Price range: $2,755.50 through $3,168.00 Inc GST
Price range: $2,505.00 through $2,880.00 Ex GST

SKU: N/A Categories: , Brand:
  • Ships from Sydney via Australia Post, including overseas. Cost shown at checkout.
  • Questions before you buy? Call (02) 9129 7600

or pay with

Add to wishlist

Description

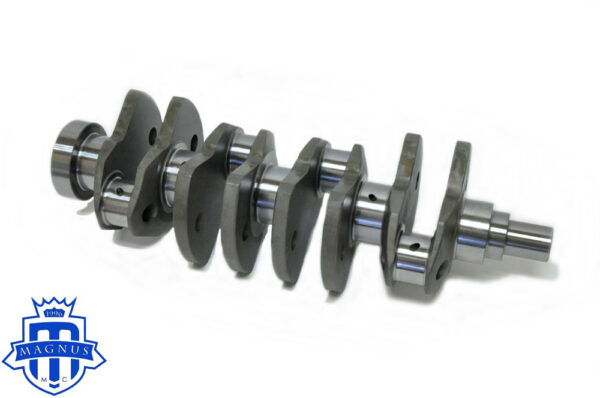

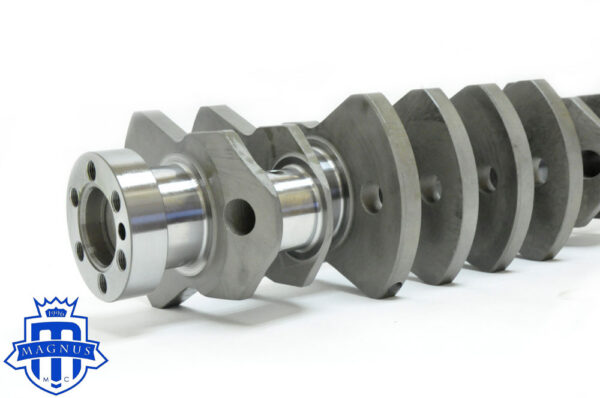

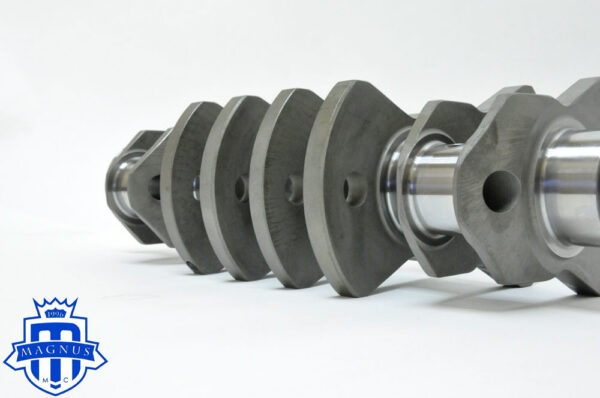

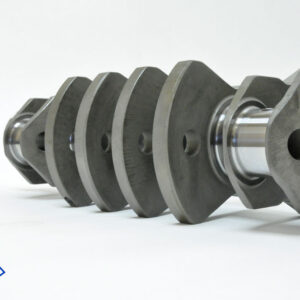

A lightened 4340 billet chromoly crankshaft, machined from the highest-quality material for maximum strength rather than treating an OEM core. It is cross-drilled for oiling, has large fillet radii, is 2lb lighter than stock yet around three times stronger, and uses re-engineered counterweights that remove the harmonics introduced by deleting the balance shafts. Custom strokes are available on request.

Currently also offering Manley cranks in 7-bolt models in 88, 94 or 100mm.

Part numbers: MMCENG1005 · MMCENG1006 · MMCENG1007 · MMCENG1008 · MMCENG1009 · MMCENG1010 · MMCENG1011

Related / pairs with: 4G63 Billet Stroker Kit · 4G63 Billet Steel Connecting Rods · 4G63 Pistons · Girdle 4G63 6-Bolt Main

Additional information

Weight N/A
Dimensions N/A
Billet Crank Configurations

Magnus Billet Crankshaft 4G63 – 6 Bolt, 88mm Stroke (MMCENG1005), Magnus Billet Crankshaft 4G63 – 6 Bolt, 100mm Stroke (MMCENG1007), Magnus Billet Crankshaft 4G63 – 6 Bolt, 92mm Stroke (MMCENG1006), Magnus Billet Crankshaft 4G63 – 7 Bolt, 95.5mm Stroke (MMCENG1011), Magnus Billet Crankshaft 4G63 – 7 Bolt, 100mm Stroke (MMCENG1010), Magnus Billet Crankshaft 4G63 – 7 Bolt, 88mm Stroke (MMCENG1008), Magnus Billet Crankshaft 4G63 – 7 Bolt, 92mm Stroke (MMCENG1009)
